deepconv/arare4 : 主成分凝結を考慮した湿潤対流実験(中層一様冷却・下層一様加熱, 臨界飽和比 1.0, 地表面温度 165 K の場合)

熱収支, 質量収支が合うようにする為のテスト計算. 基本場の温度分布の勾配が不連続であることにより, 本来小さいことが想定されている温位・雲密度の数値拡散項が著しく大きくなるという現象が発生していた. これを防ぐためになめらかな基本場温度分布を作り, 計算を行なった.

参考

計算設定

結果一覧



















































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































基本場温位. 不連続点が無くなったことが確認できる.



基本場温度. 不連続点が無くなったことが確認できる.



全気相質量.

全雲質量.

全運動エネルギー.

全内部エネルギー(緑)と全エネルギー(赤).

全運動エネルギーと全ポテンシャルエネルギー(黒).

温位の tendency. 赤が移流, 青が放射強制, 緑が潜熱加熱, 紫が数値拡散, 黒が正味の加熱を表す.

雲密度の tendency. 緑が凝結率, 赤が移流, 青が乱流拡散, 紫が数値拡散, 黒が正味の雲密度変化を表す.

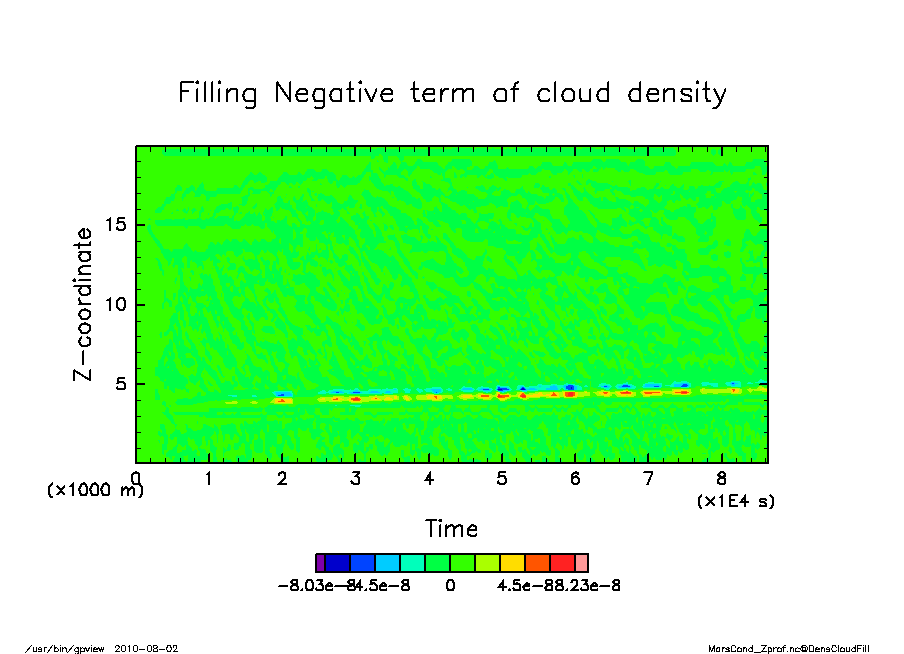

穴埋め量の z-t 図.

気相と雲の質量の和のプロット.

温位の 2 次移流項の全質量への寄与.

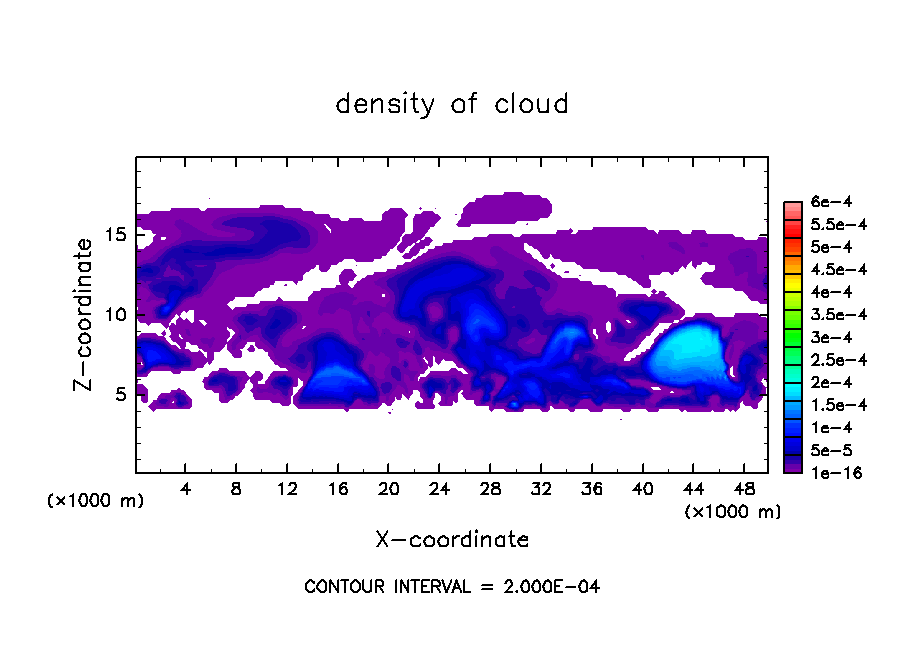

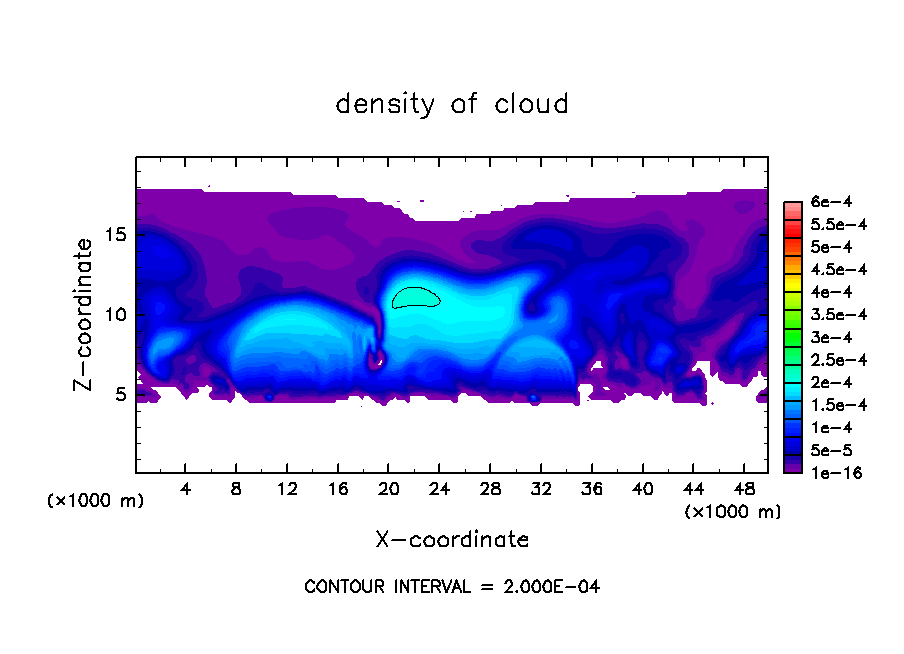

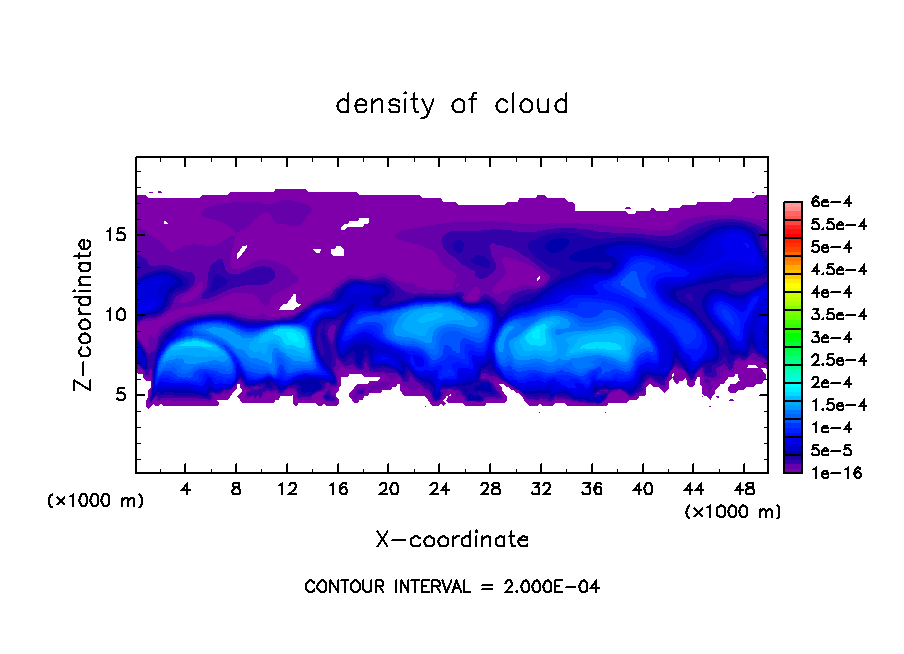

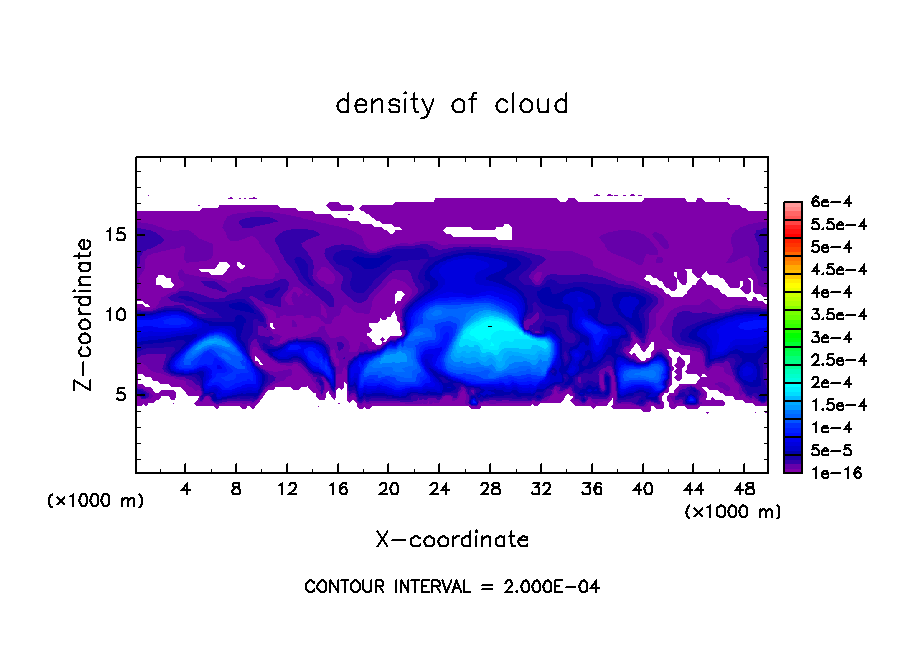

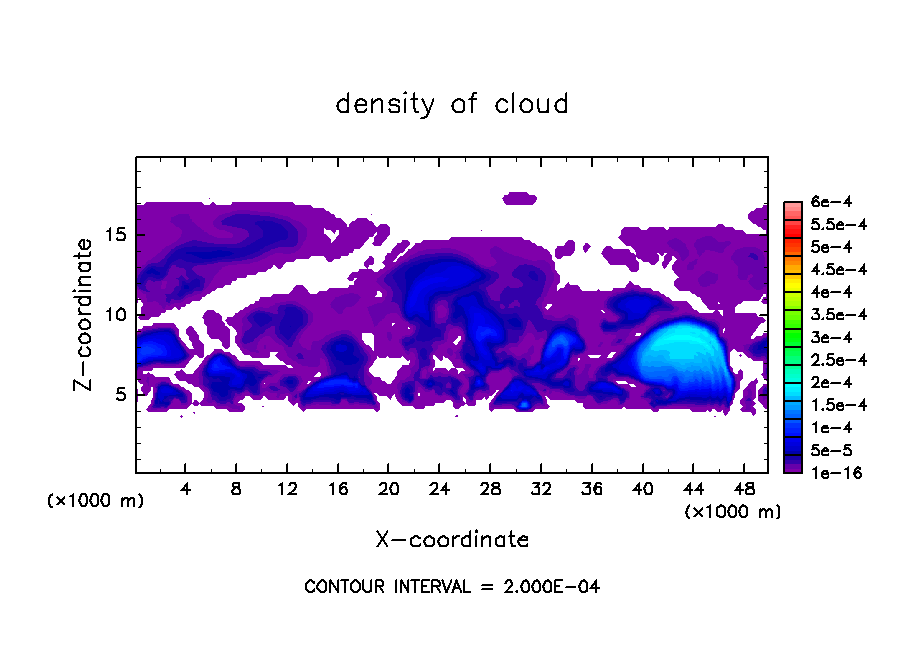

雲密度の t-z 図

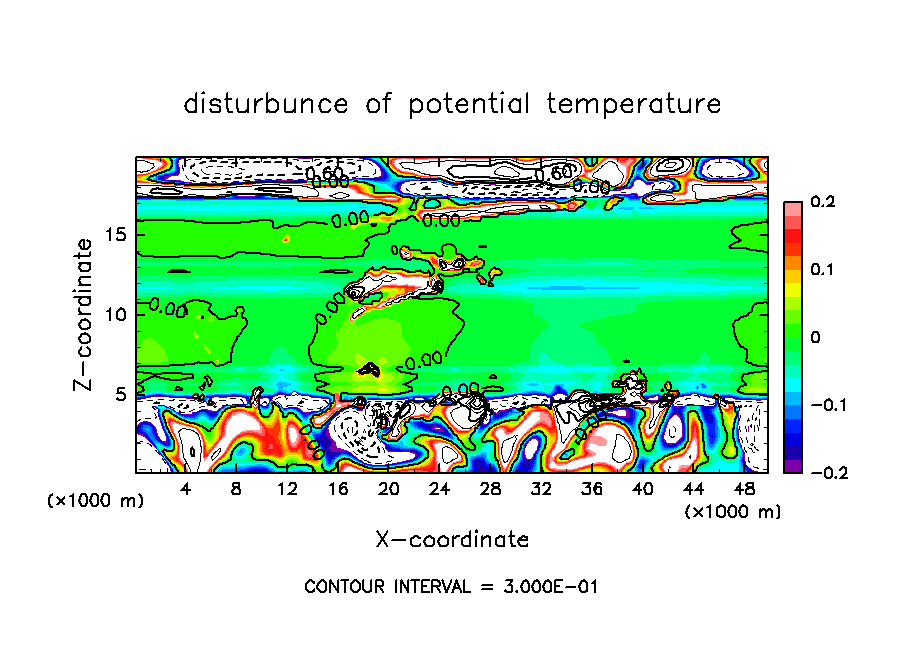

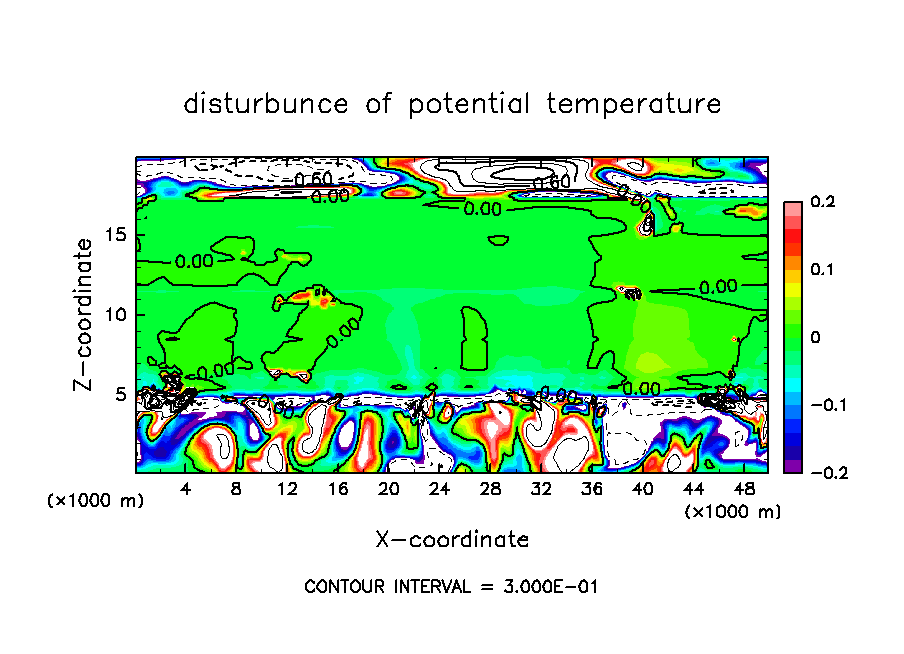

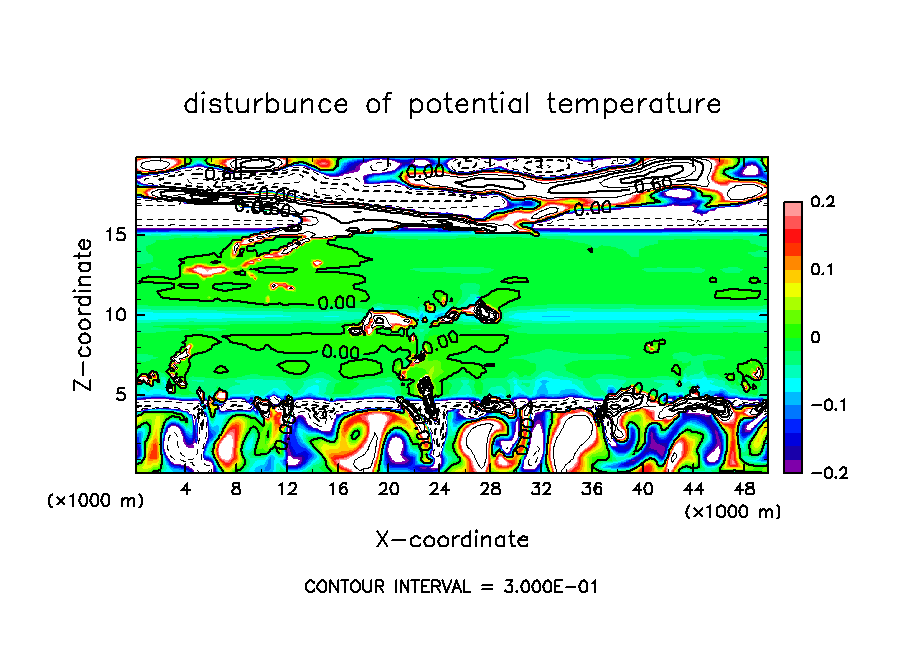

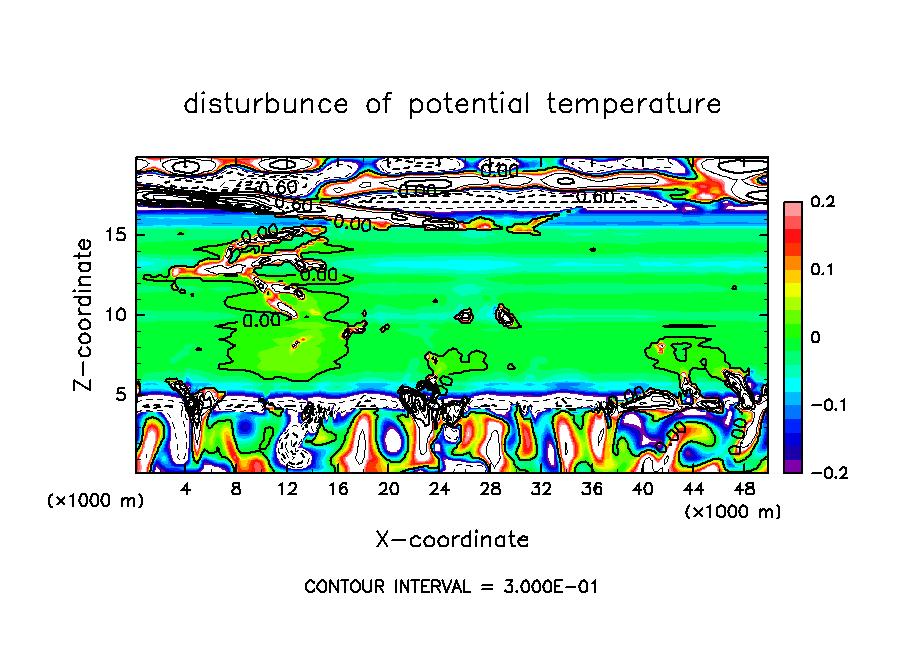

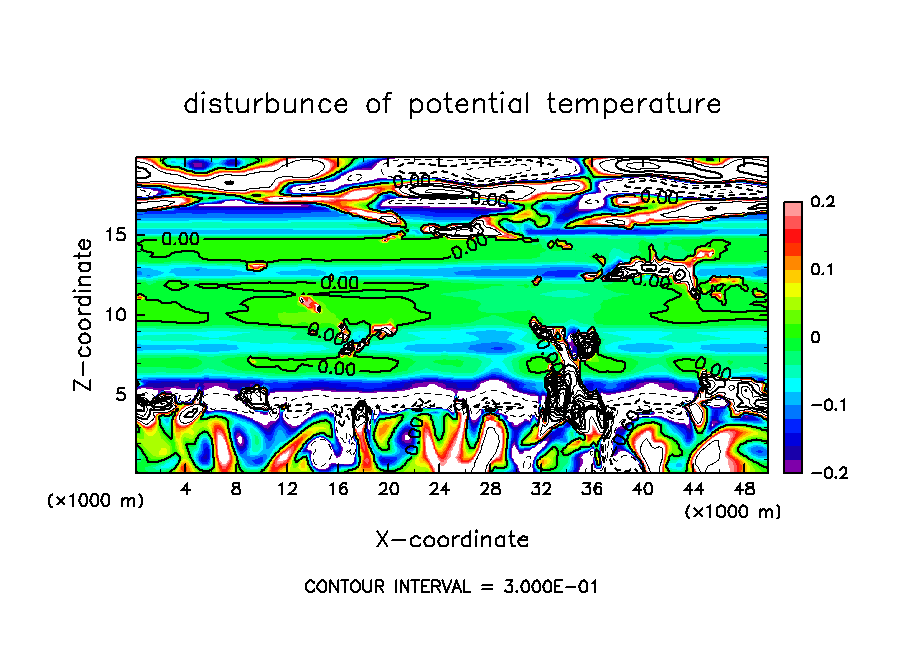

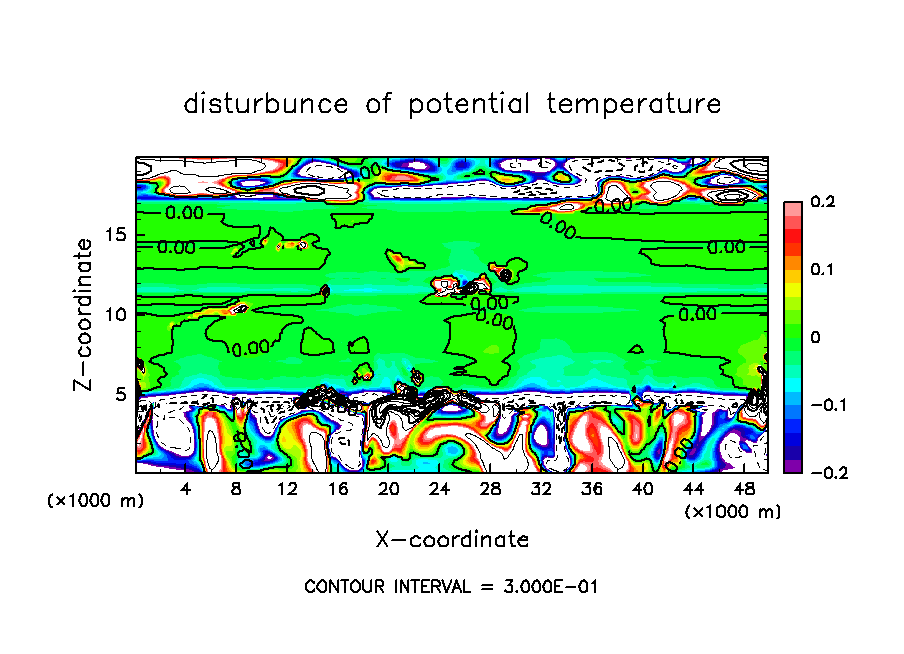

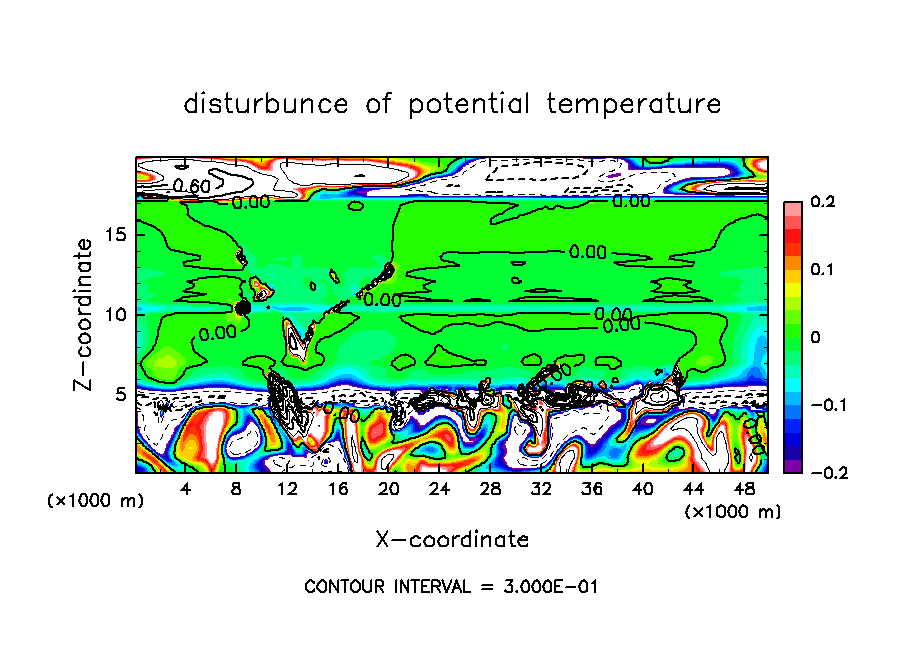

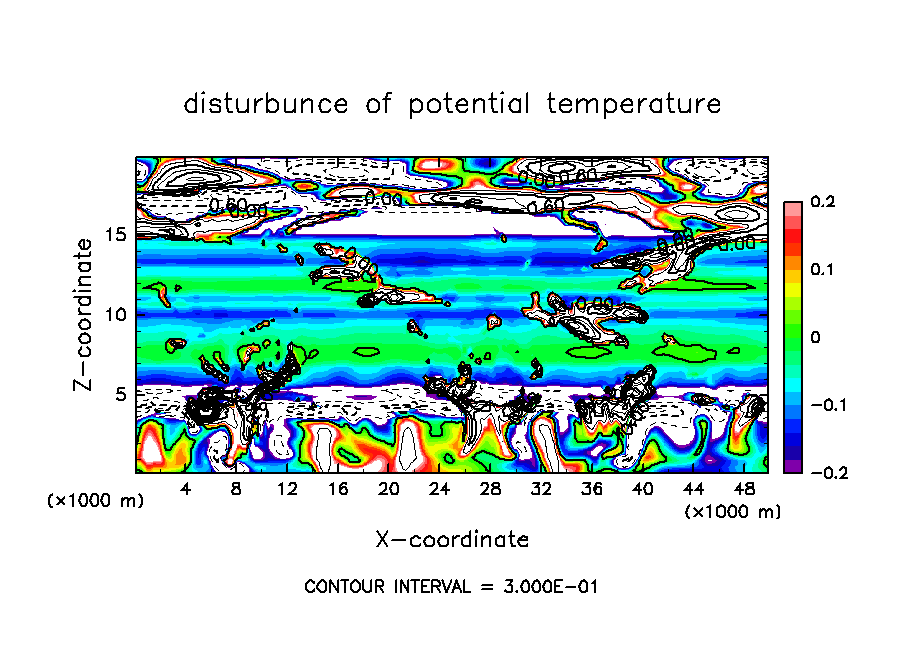

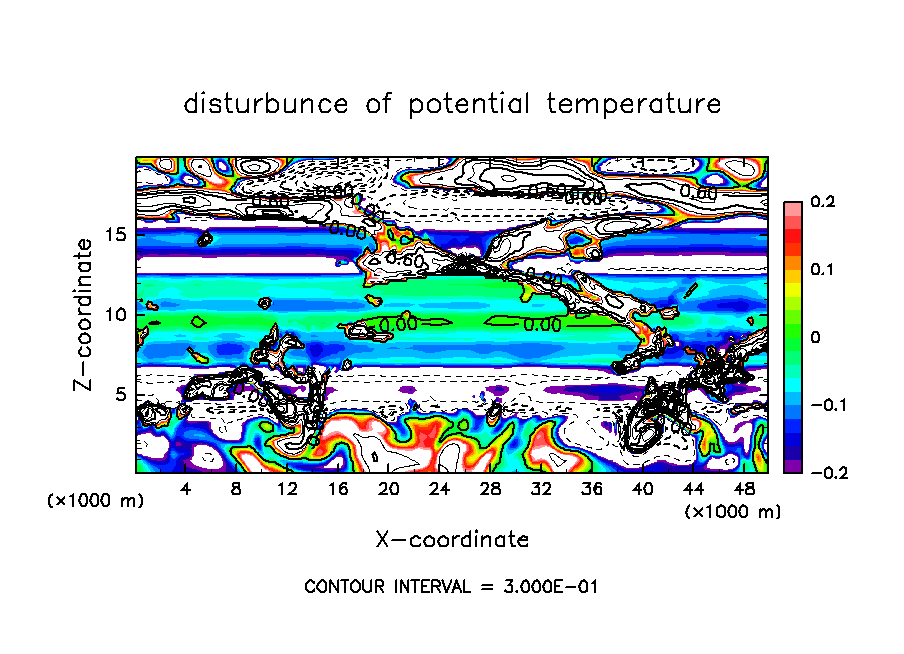

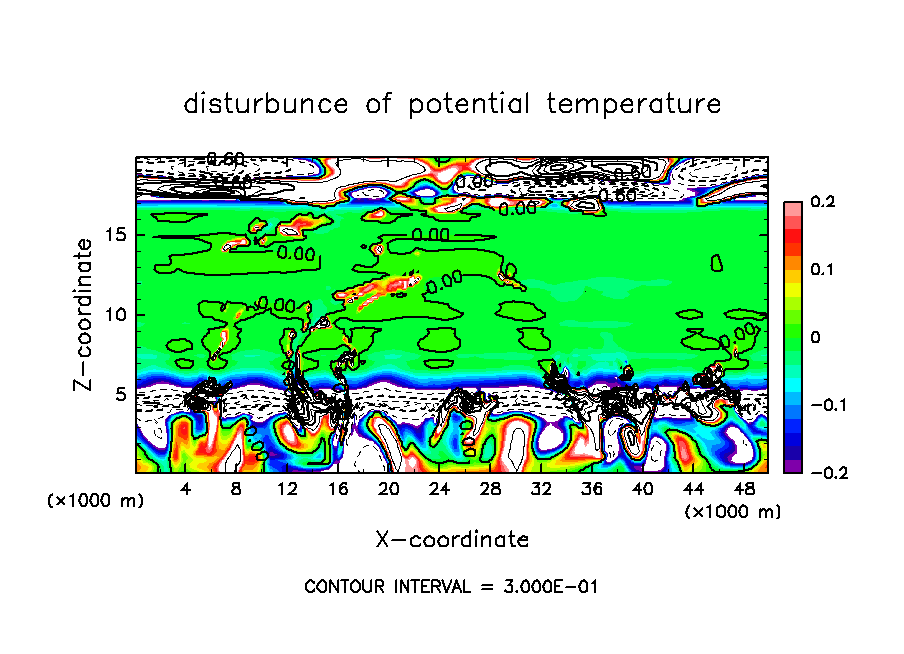

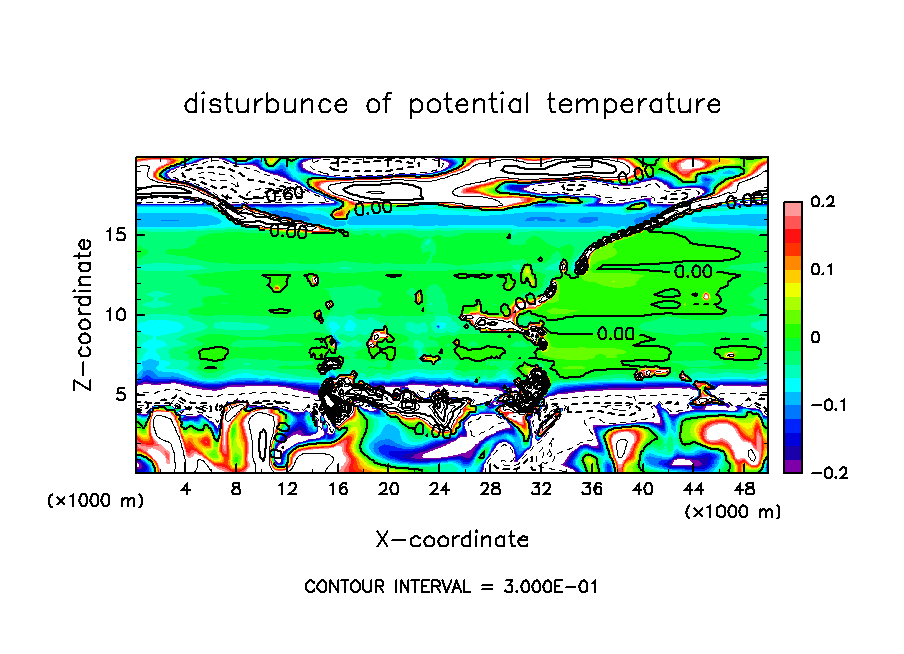

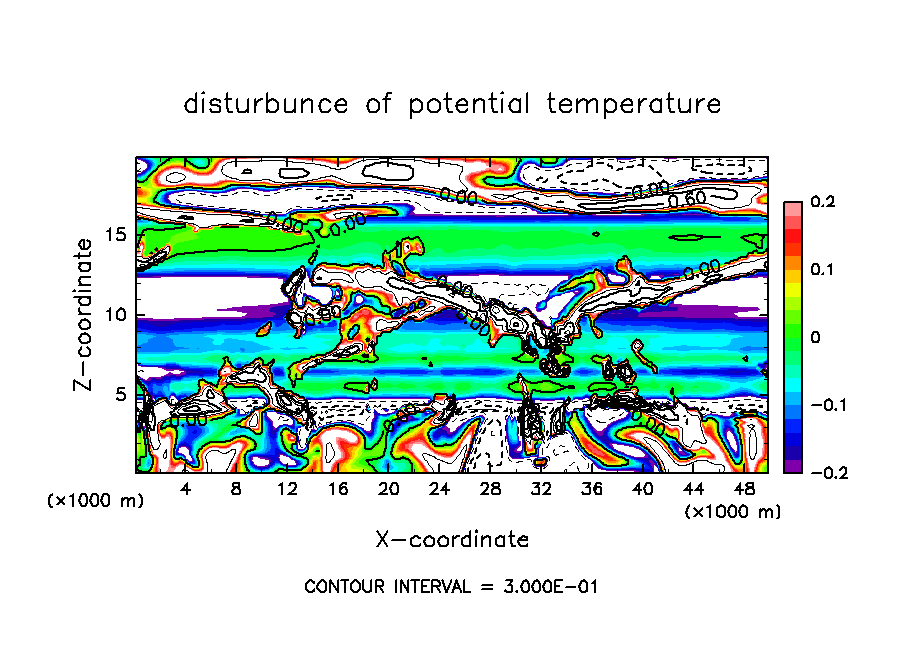

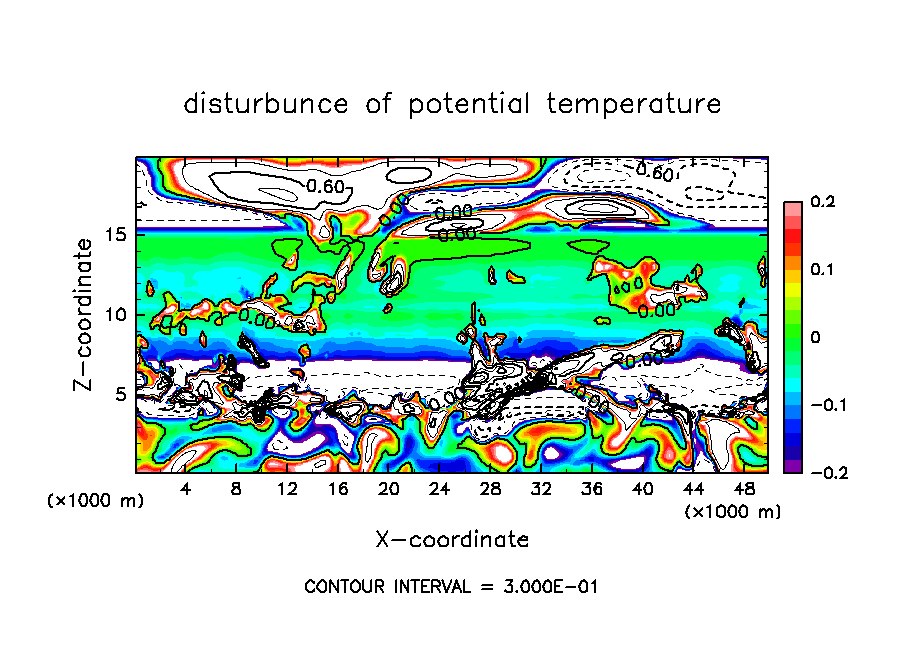

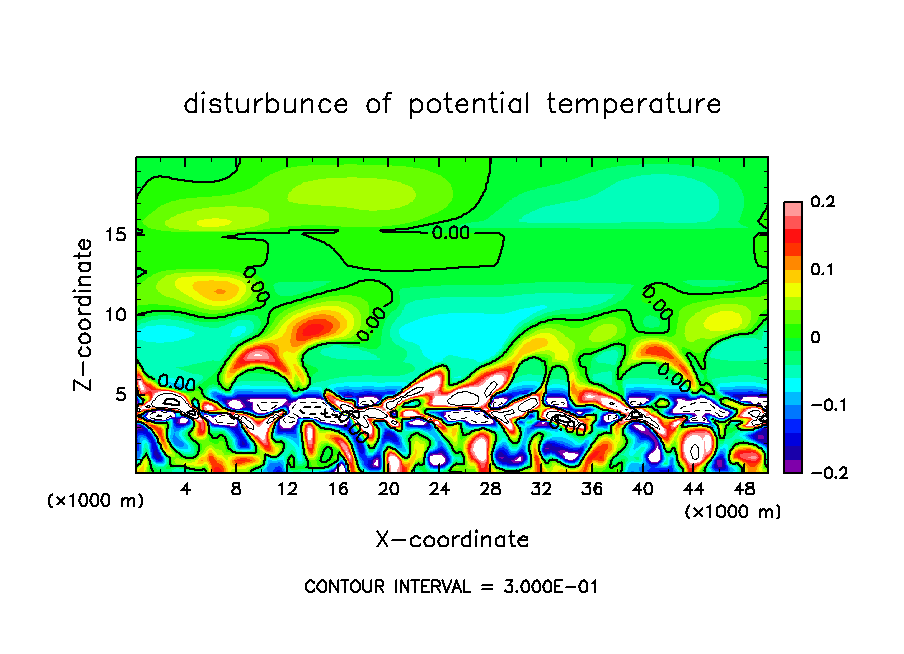

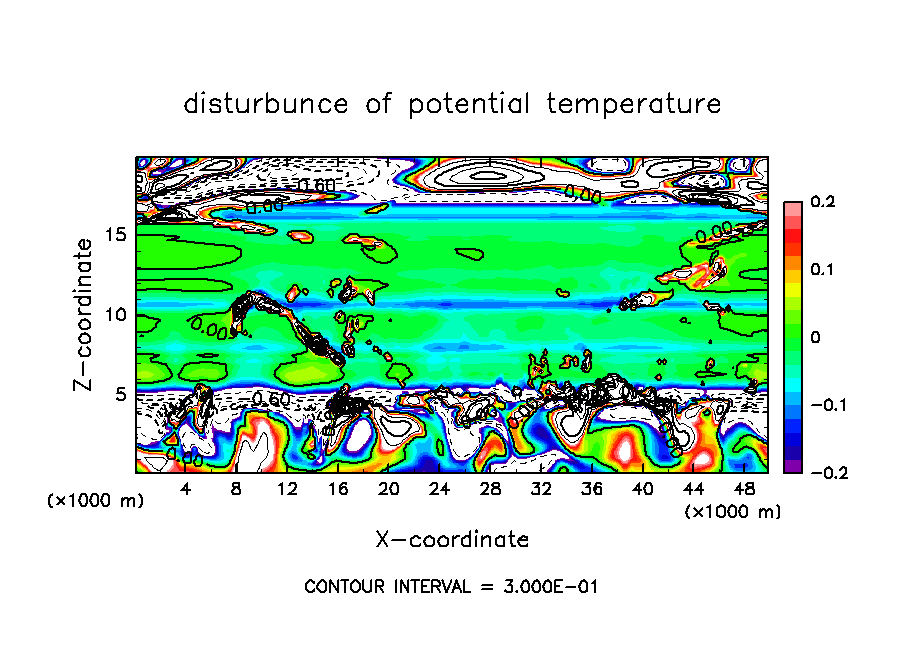

温位擾乱の t-z 図

温度の t-z 図
